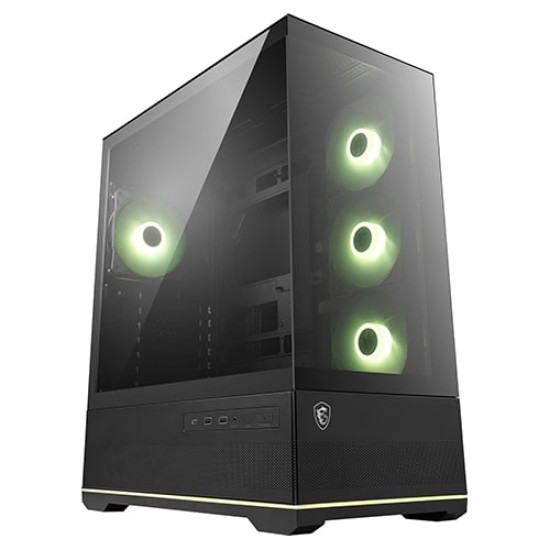

MSI MAG PANO 110R PZ Mid-Tower Gaming Case

Key Features

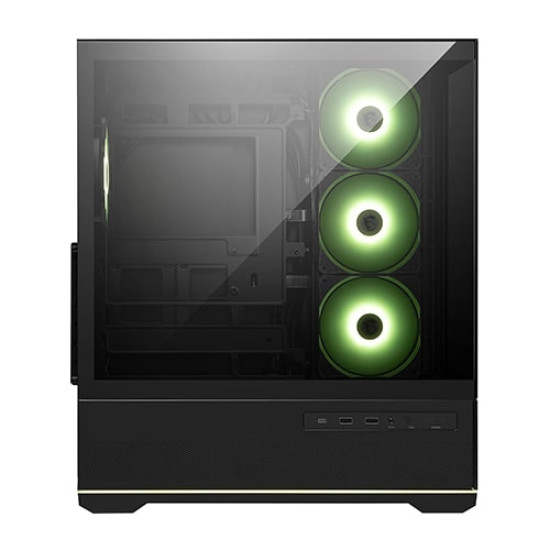

• 270-Degree Display: The chassis features a 270-degree panoramic design with tempered glass, providing an expansive view to showcase detailed components.
• Measurements: Supports multiple motherboard sizes, including regular ATX, Micro-ATX, Mini-ITX and back-connect ATX and Micro-ATX, allowing users to customize their PC setup.
• Pre-build with Reverse Blades Fan: Pre-installed reverse blade fans on the side ensure an unobstructed display of the ARGB fan’s lighting effects, free from interference by fan frames.
• ARGB-Fan Control Board: The 1-to-5 ARGB fan control board supports up to 5 ARGB fans, allowing users to adjust 18 ARGB lighting effects with a single LED switch button
• Upgrade Airflow Layout: Supports up to 10 fans, a 360mm radiator on top and a 120mm radiator at rear. The lower chamber, surrounded by vents, further enhances heat dissipation for optimal performance.

MAG msi arsenal gaming

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

EZ TO INSTALL

• The uni-front-panel cable is easy for users to connect to MSI motherboards.
• Push-latch side panel and PCIe bracket, streamline installation process, enhancing the experience.

Specification

Product Name : MAG PANO 110R PZ

Case Form Factor : Mid-Tower

Expansion Slots : 7

Maximum GPU Length : 400 mm / 15.75 inches

Maximum CPU Cooler Height : 160 mm / 6.30 inches

Power Supply Support : ATX

Maximum PSU Length : 200 mm / 7.87 inches

Dimensions (DxWxH) : 420 x 225 x 485 mm / 16.54 x 8.86 x 19.09 inches

Motherboard Form Factor Support

Regular : ATX / Micro-ATX / Mini-ITX

Back-connect : ATX / Micro-ATX

I/O Ports

1 x USB 20Gbs (Type-C)

2 x USB 5Gbs (Type-A)

1 x Audio-Out / Mic-in

1 x LED Button

1 x Power Button

Drive Mount Support

2 x 2.5“

2 x 3.5“

2 x 2.5"/3.5" combo

Fan Size Support

Top: 3 x 120 mm / 2 x 140 mm

Front: NA

Rear: 1 x 120 mm

Side: 3 x 120 mm / 2 x 140 mm

Bottom: 3 x 120 mm (Above the power shroud)

Pre-installed Fan Size

Side: 3 x 120 mm

Rear: 1 x 120 mm

Pre-installed Fan Type

Side: 3 x ARGB Fan (Reverse Blades Fan)

Rear: 1 x ARGB Fan

Radiator Size Support

Top: 120 / 140 / 240 / 280 / 360 mm

Front: NA

Rear: 120 mm

Side: NA

Bottom: NA

Connection

1 x USB 20Gbs (Type-C)

2 x USB 5Gbs (Type-A)

Mic In/ Audio Out

LED Button

Power Button
